Products / Windows / Wood Aluminium Passive

1

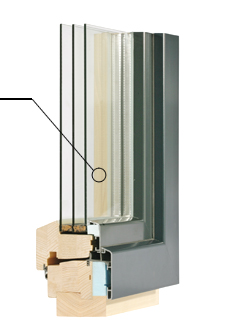

Triple Glazing

U values of 0.5 or 0.6 ensure optimal combination of thermal insulation on the inside and solar gain from outside.

2

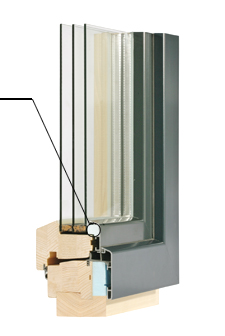

Deeply embedded glass

A unique feature of Hrachowina's design, the deep embedding of glass into the Wood-Aluminium frame, providing superior thermal insulation.

3

Robust Sash

With a dimension of 91mm the Passive House window offers a highly robust sash.

4

Stable Frame

A dimension of 72mm ensures a stable frame.

5

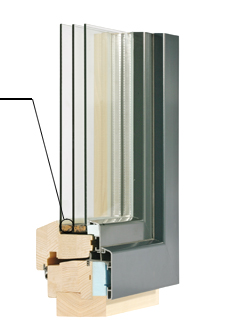

Heat insulation strip

An additional durable insulating barrier between the aluminium cladding and the glass increases the thermal insulation.

6

Perfect sealing

The U shape gasket with two sealing surfaces provides improved energy and sound performance.

7

High Performance Foam

20mm of high performance insulating foam provides extra thermal protection between wood and aluminium.

Wood Aluminium Passive House

Using a range of technical innovations our Passive House window HMAX surpasses the established standard for passive house construction.

Our 103 mm frame accommodates a triple glazing unit as well as 20 mm of insulation between wood and aluminium. Depending on the glazing used we achieve a u value of 0.77 w/m2k down to 0.70 w/m2K.

standard colours:

View all

specifications:

u value glass	1,1	0,7	0,6	0,5
g value glass	62	52	52	52
u value frame	0,80	0,80	0,80	0,80
u value window	1,1	0,82	0,75	0,69

Colours

We offer 10 standard aluminium colours.
We also offer any ral colour or a range of textured, satin or wood grain finishes at an additional cost.
Gasket colour = Anthracite grey for all products.
Silicon colour = Grey for all products.
